CNC Machining of Stainless Steel Components

CNC Machining of Stainless Steel Components for the Packaging Material Industry

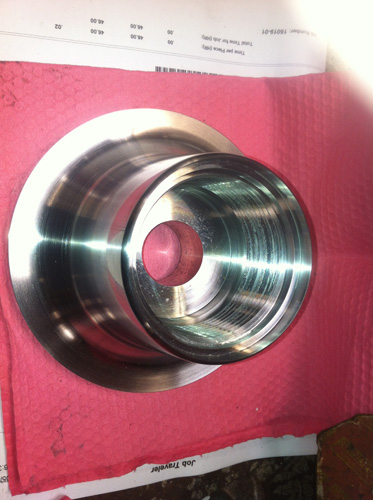

A client came to us to manufacture a stainless steel component that would be used in manufacturing packing foam. This adjustable radial micro foam die lip was fabricated from 17-4 stainless steel. Machining consisted of CNC turning the inner and outer diameter of the inner and outer lip and threading the inner and outer diameter of the inner and outer lip. Using our 3-axis CNC mill we drilled and tapped eight holes on the face of the inner lip and six holes on the flange of the outer lip. The fabrication processes was completed with heat treating the piece to RC 40/47 and hand lapping one fit.

This component had final dimensions of: inner lip- O.D. 5.750", I.D. 1.250", length 3.63"; outer lip- O.D. 7.80", I.D. 4.750", length 3.067". We worked to the following tolerances for this project: ±.001", ±0?-30', perpendicularity of .001", parallelism of .001", and concentricity of .001". To ensure the quality of this manufacturing project, diameters and angles were checked prior to heat treating, after heat treating, and upon completion.

More information on this CNC machining of stainless steel components for the foam packaging manufacturing industry, please see the table below or contact us directly.

Request a Quote



Highlights of this CNC Machining of Stainless Steel Components Project

Product Description

This stainless steel component is used within a packing foam manufacturing application.

Capabilities Applied/Processes

Primary Capabilities:

  • CNC Turning
    • Turn O.D. & I.D. of Inner and Outer Lip
    • Thread I.D. of Inner Lip
    • Thread O.D. of Outer Lip
  • CNC Milling
    • Drill & Tap 8 Holes on Face of Inner Lip
    • Drill & Tap 6 Holes on Flange of Outer Lip

Secondary Capabilities:

  • Heat Treatment
    • Heat Treat to Rc 40/47
    • Hand Lap one fit when finished

Equipment Used to Manufacture Part

  • CNC Lathe
  • 3 Axis CNC Mill
  • Hand Lap

Overall Part Dimensions

  • Inner Lip: O.D.: Ø5.750" / I.D.: Ø1.250"
  • Length: 3.63"
  • Outer Lip: O.D.: Ø7.80" / I.D.: Ø4.750"
  • Length: 3.067"

Tightest Tolerances

  • ±.001"
  • ±0° -30'
  • Perpendicularity of .001"
  • Parallelism of .001"
  • Concentricity of .001

Material Used

17-4 Stainless Steel

Max Material Finish

20 RMS

In Process Testing / Inspection Performed

Diameters and angles checked prior to heat treat and after as well as upon completion.

Industry for Use

Packaging Material

Delivery Location

Wurtland, Kentucky

Standards Met

Customer supplied print, 2D CAD Drawing

Product Name


Adjustable Radial Microfoam Die Lip
